MECHANICAL DIAPHRAGM METERING PUMP / CHEMICAL DOSING PUMP
| Model no | Material | Fitting | Q Max (L/H) | Pressure max kgf/cm2 | Power |
|---|---|---|---|---|---|
| MBT-66-PVC | PVC | DN 15 | 66 | 8 | 380v/50 hz/0.2 kw |
| MBT-132-PVC | PVC | DN 15 | 132 | 8 | 380v/50 hz/0.2 kw |
| MBT-180-PVC | PVC | DN 25 | 180 | 5 | 380v/50 hz/0.2 kw |
| MBT-270-PVC | PVC | DN 25 | 270 | 5 | 380v/50 hz/0.2 kw |
| MBT-132-TFL | Teflon | DN 15 | 132 | 8 | 380v/50 hz/0.2 kw |
| MBT-180-TFL | Teflon | DN 25 | 180 | 5 | 380v/50 hz/0.2 kw |
| MBK-90-TFL | Teflon | DN 15 | 90 | 10 | 380v/50 hz/0.4 kw |
| MBK-168-TFL | Teflon | DN 15 | 168 | 10 | 380v/50 hz/0.4 kw |
| MBK-192-TFL | Teflon | DN 25 | 192 | 5 | 380v/50 hz/0.4 kw |
| MBK-306-TFL | Teflon | DN 25 | 306 | 5 | 380v/50 hz/0.4 kw |
| MBK-90-PVC | PVC | DN 15 | 90 | 10 | 380v/50 hz/0.4 kw |
| MBK-168-PVC | PVC | DN 15 | 168 | 10 | 380v/50 hz/0.4 kw |

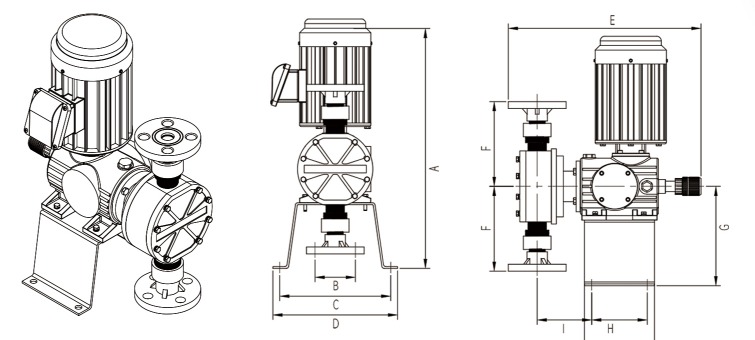

| Series | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| MBT-66/132 | 520 | 50 | 240 | 270 | 325 | 172.5 | 195 | 120 | 75 | 170 |
| MBT-180 | 520 | 65 | 240 | 270 | 340 | 175 | 195 | 120 | 85 | 170 |
| MBT-270 | 520 | 65 | 240 | 270 | 340 | 190 | 195 | 120 | 85 | 170 |
| Series | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| MBK-90/168 | 540 | 65 | 240 | 270 | 420 | 190 | 220 | 120 | 115 | 170 |
| MBK-192 | 540 | 65 | 240 | 270 | 420 | 175 | 220 | 120 | 115 | 170 |
| MBK-306 | 540 | 50 | 240 | 270 | 400 | 172.5 | 220 | 120 | 100 | 170 |
